Description

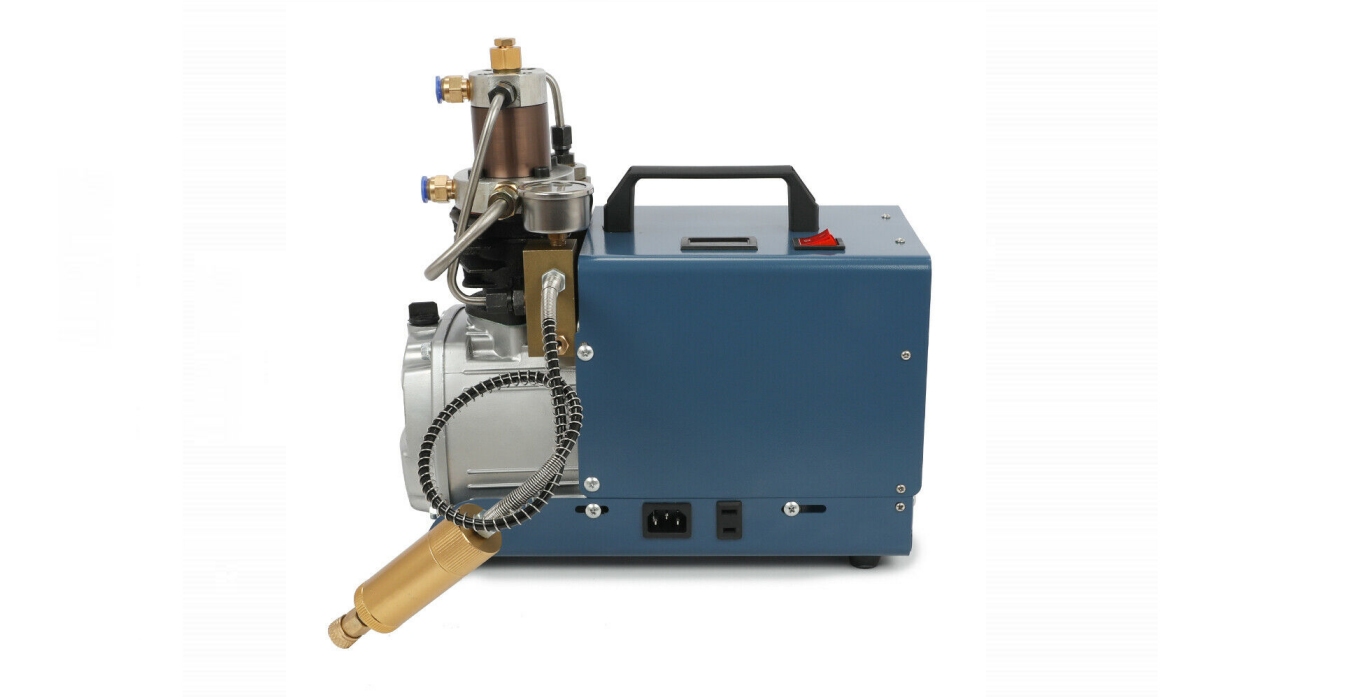

300Bar / 4500PSI 240v electric compressor water cooled

Only for PCP bottles, Not suitable for dive tanks or recharge bottles over 1L

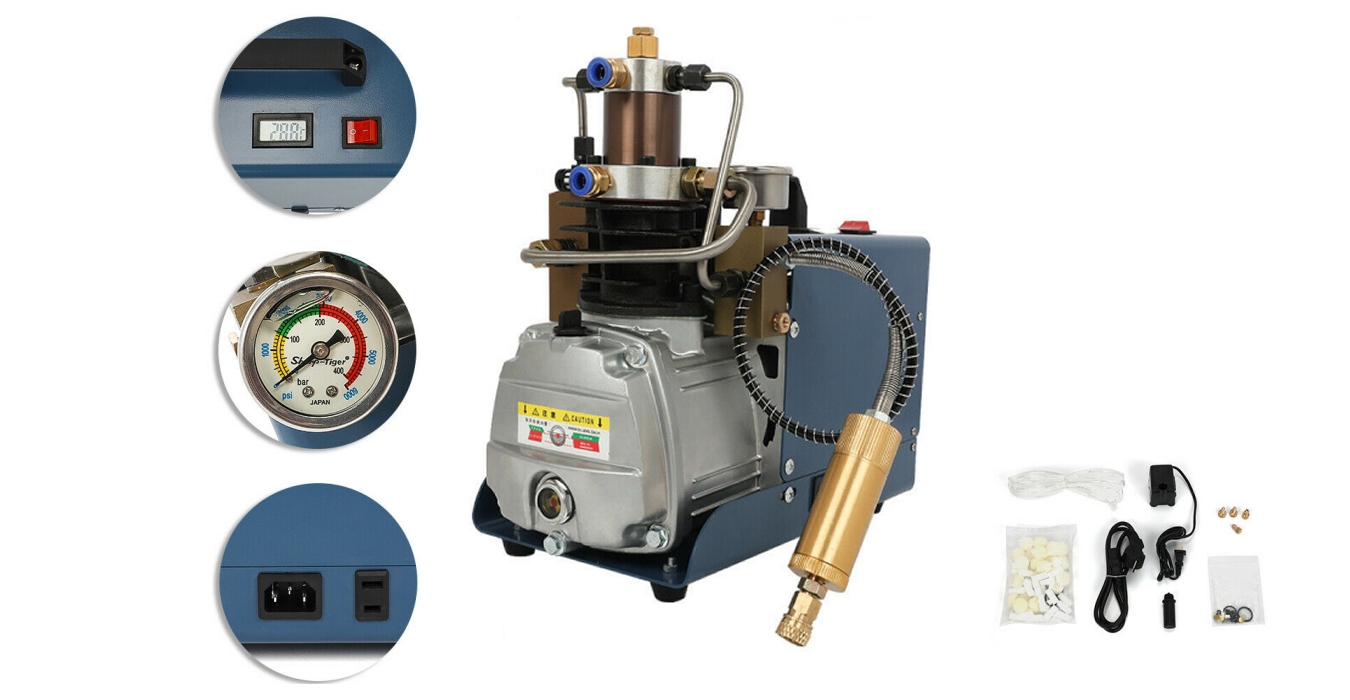

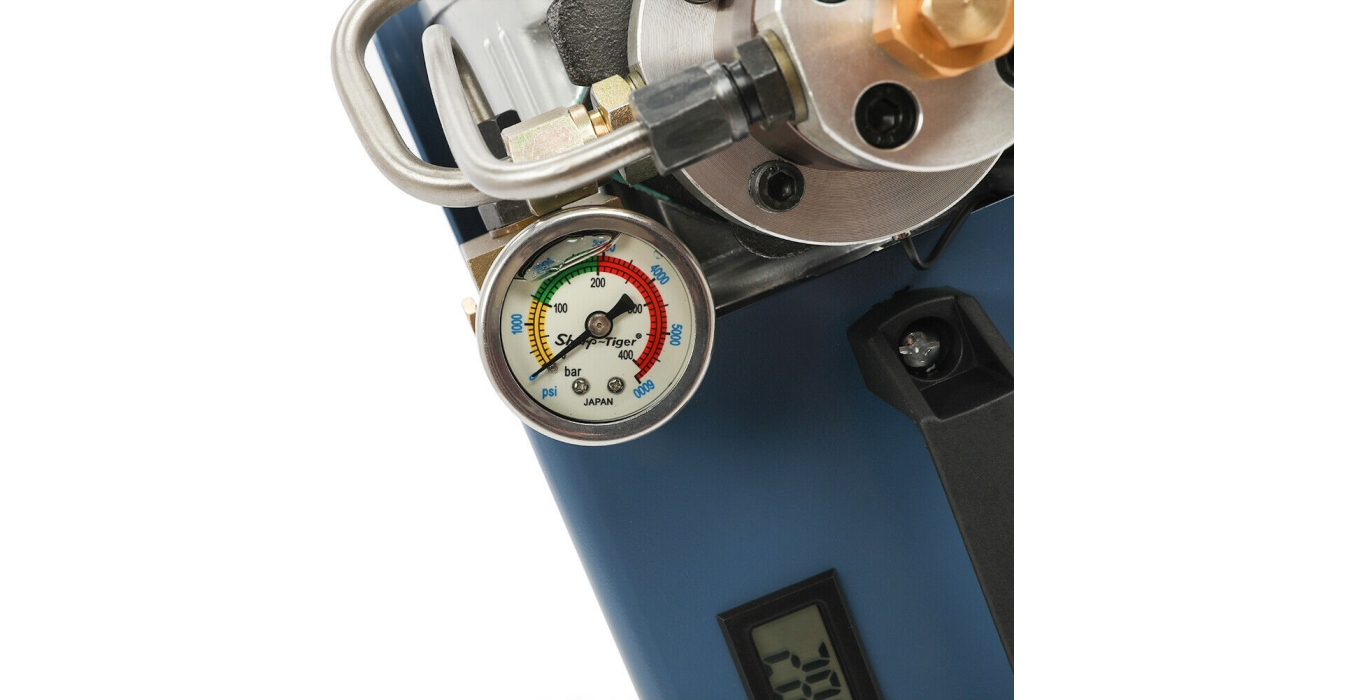

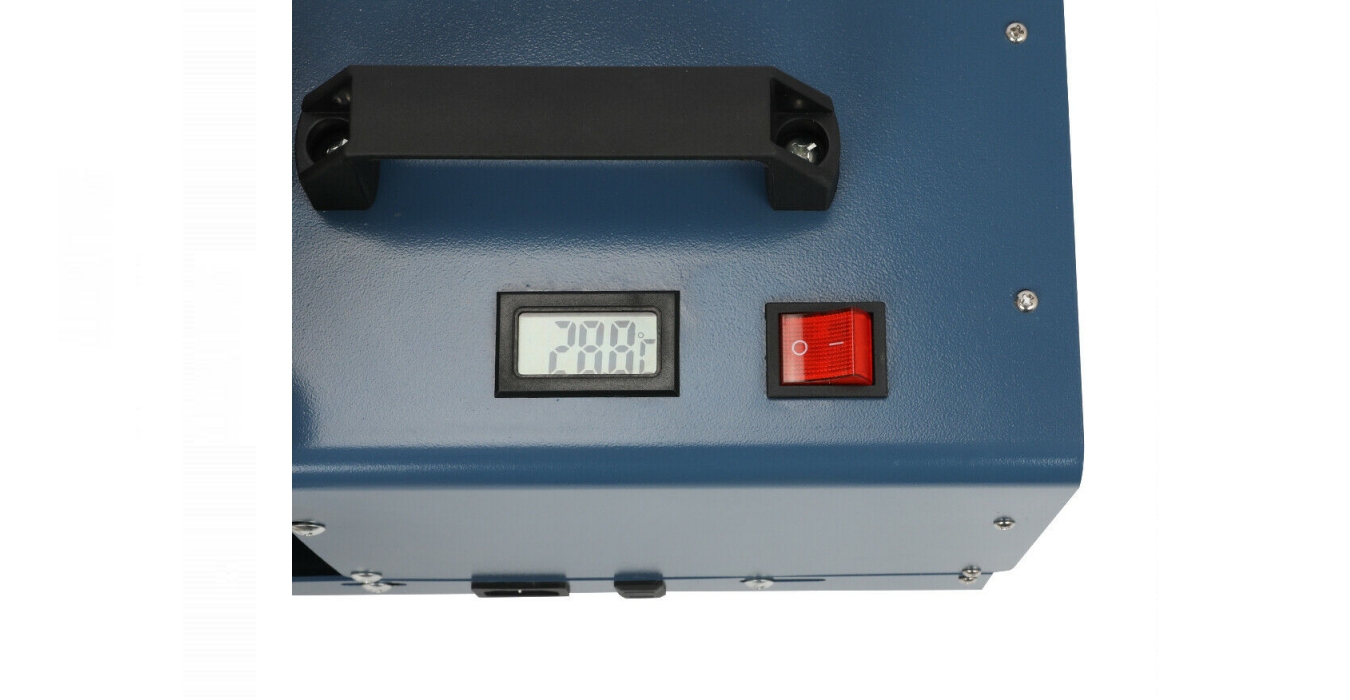

Has digital temperature gauge, incudes filler hose & water seperator with foster quick release connector.
Includes seperate electric water cooled kit which must be used to prevent over heating

☞ Please add lubricating oil (ISO VG46 or AW 46) before you start using the machine first.
☞ Don’t forget to put the lube oil into the compressor before running.
☞ The machine must not be used without oil, so you must pay attention to the level of oil.
☞ When running, if the machine vibrates violently, please add pad or towel under the compressor.
☞ When the compressor is working, the cooling system must be working at the same time.

Specifications:

Motor Power: 1.8KW
Water Pump Power: 8W
Power: 220V-240V 50HZ
Cover Material: Cast Aluminum
Motor Material: 100% Pure Copper
Air Flow Rate: 50L/MIN
Dia. of Female Plug: 8mm
Working Pressure: 300Bar/30Mpa/4500PSI
Cooling System: Water Cooling & Air Cooling

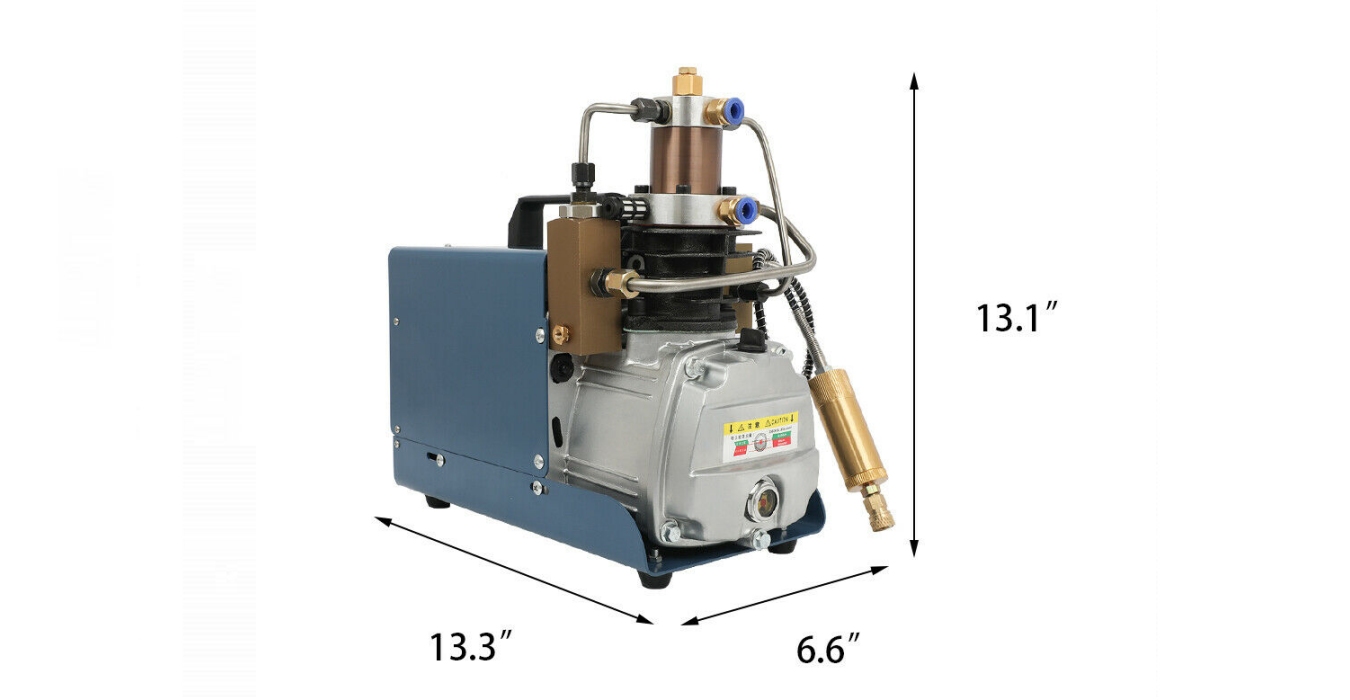

Package Size: 43x41x24cm(17x16x9.4in)
Gross Weight: 16.6kg/36.6lbs

Package Includes:
1 x Compressor
1 x Submersible Water Pump
1 x Hose with Female Plug
2 x Water Pipe
1 x Power Cord
1 x User Manual
